Non Destructive Testing Laboratory (NDT)

Laboratorio de Ensayos No Destructivos (END)

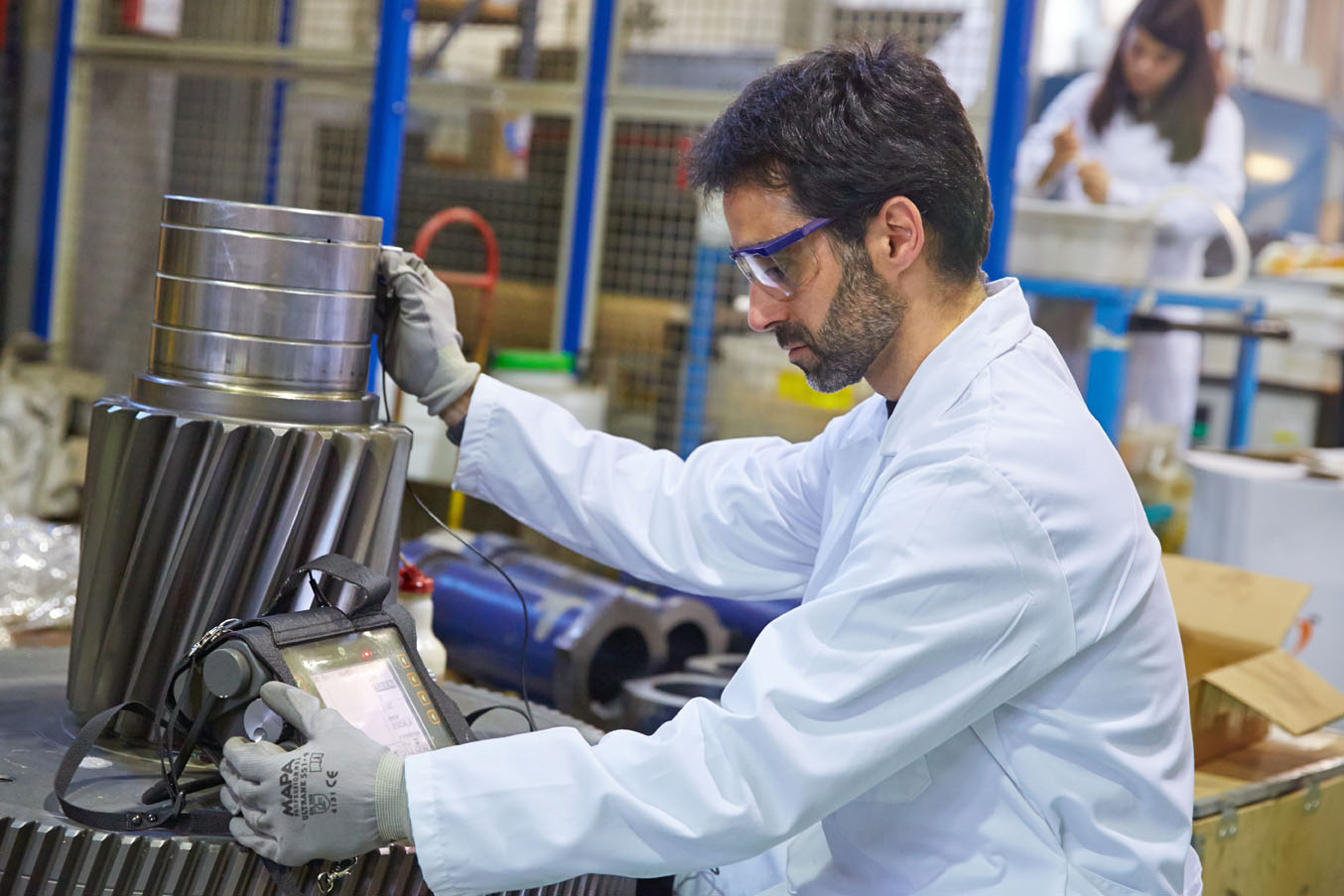

Laboratory that makes it possible to inspect 100% of a product without destroying or deteriorating its characteristics. We can detect, position, identify and dimension flaws in parts, structures and assemblies.

Description

The laboratory has the following equipment:

  • Portable ultrasound apparatus.
  • Impulse-echo technique using straight, bicrystal and angular probes.
  • Magnetic particle equipment.
  • Magnetic yoke.
  • Benching.
  • Thickness measurement equipment via ultrasound.

The tests that can be carried out are:

  • Volumetric tests. Ultrasound (UT)
  • Semi-volumetric tests. Magnetic particle testing (MPT)
  • Surface tests. Penetrant testing (PT) and visual testing (VT)
  • Other tests: measurement of residual stress using the blind hole method (extensometry)

Aimed at:

  • Renewable energies
  • Manufacturers of metal components.
  • Metal transformation sector.
  • Oil & gas sector.
  • Construction sector.
  • Design and maintenance engineering firms Infrastructures.
  • Component manufacturers for the aeronautical, railway, automotive, naval and offshore sectors.
View more

Accreditations and Recognition

-	Acreditación ENAC ILAC para el sector materiales según ISO 17025 con nº expediente 4/LE063,
Laboratory certified in ISO 9001 and ISO 17025 (ENAC certification No. 4/LE063)
-	Acreditación ENAC ILAC para el sector materiales según ISO 17025 con nº expediente 4/LE063,
ENAC ILAC accreditation for the construction sector in compliance with ISO 17025, under file No. 4/LE024
-	Acreditación ENAC ILAC para el sector materiales según ISO 17025 con nº expediente 4/LE063,
ENAC ILAC accreditation for acoustics in compliance with ISO 17025, under file No. 4/LE456. Laboratory with certified management system in accordance with standard UNE-EN 9100:2010.
AIRBUS authorized Laboratory for Surface Treatment
AIRBUS authorised Laboratory for surface treatments
Laboratorio autorizado por la ESA (Agencia Espacial Europea) para “SMT Microsectioning” según ECSS-ST-Q-70-38
European Space Agency (ESA) authorised laboratory
NADCAP MTL accreditation for Materials Testing
Nadcap accreditation for chemical processes
View more
